State-of-the-Art Use of XBRL Definition Relations to Express Business Rules

I will hold this out as a state-of-the-art use of XBRL definition relations to articulate a rich set of business rules for a taxonomy.

If you don't agree, please contact me and explain specifically why you might disagree. I am not saying that this is perfect, but it seems to be very useful to me. Keep in mind that this is a working prototype and still under construction, so the actual business rules might not be 100% accurate at the present time.

What this working prototype does is articulate machine-readable business rules for US GAAP financial disclosures.  I will walk you through one disclosure and the big picture.  From there you can look at other disclosures using the same process that I show.

To fully appreciate these machine-readable files, you need an XBRL Taxonomy viewer or some other way of reading these XBRL files.

One disclosure:

  • Disclosure: Roll up of the components of inventory, Inventory, Net, Current [Roll Up].  If you look closely at the disclosure, you notice a list of multiple examples of the disclosure.  Here is another version of that list. The information is the same, there is just more metadata on the alternative list.
  • Disclosure's business rules:  If you look at the disclosure, you notice some patterns.  You notice that many use the Level 3 Text block us-gaap:ScheduleOfInventoryCurrentTableTextBlock. You notice that each of the individual disclosures provided is a [Roll Up].  You notice that the total of the roll up is generally, if not always, the concept us-gaap:InventoryNet.  That information is basically business rules related to this specific disclosure.  I articulated those rules in machine-readable form using XBRL definition relations.  This is the machine-readable XBRL definition linkbase which contains the rules for that disclosure.
  • Arcroles for articulating disclosure's business rules: To specify the relations in the XBRL Definition Linkbase, I created arcroles.  I have two different files for no particular reason really, I just created the rules at different times.  This is the firstThis is the second.

That is really it.  There is a lot of additional information in the human readable information, you can ignore that or dig into that as well.

Multiple Disclosures:

Keep in mind that the business rules and disclosures are a working prototype.  A lot works and is correct, other things are still a work-in-progress.  But, this should give you a good idea of what you can do with XBRL definition relations.

This RSS feed provides a list to each of the sets of business rules, independent of the topics and disclosures. If you want a HUMAN READABLE list of disclosures, you can find that here.

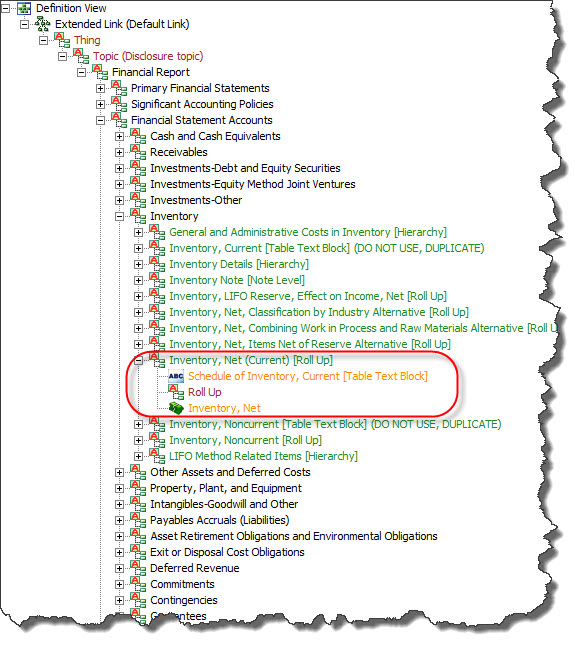

If you dont have access to an XBRL Taxonomy Viewer, this is what the XBRL definition relations in the last bullet looks like:

(Click Image for Larger View)

So in summary, XBRL definition relations are a powerful tool which can be used to articulate machine-readable business rules using a global standard format.  I hope this helps you get an idea of how easy and useful this approach is.
